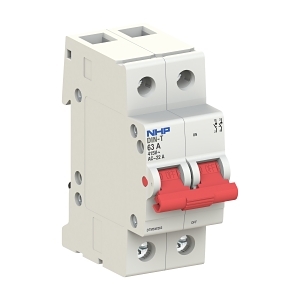

Product Name/Title: NHP DIN-T Main Switch 2 Pole 80A
Brand: NHP
SKU: DTMSW280
Alternatively Known As: NHP Main Switch, 2 Pole Main Switch, 80A DIN Switch
- Rated Current: 80 A
- Number of Poles: 2
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC
- Rated Impulse Withstand Voltage: 4 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 35 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 85mm x 75.8mm x 35mm
- Weight: 0.18 kg
- 2 Pole configuration for reliable switching.
- Rated current of 80A suitable for various applications.
- IP40 protection rating for dust and moisture resistance.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment control
- Complies with AS/NZS 3000 for wiring rules and AS/NZS 3820 for essential safety requirements.
- Energy efficiency and long product life.
1 year warranty against manufacturing defects.
The NHP DIN-T Main Switch 2 Pole 80A is available now for immediate purchase. Ideal for various electrical control applications.
