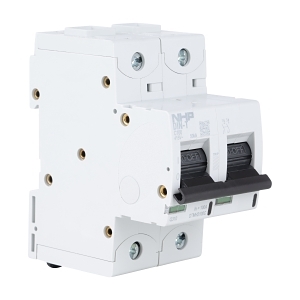

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10H 2Pole 80A B Curve
Brand: NHP
SKU: DTMH280B
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 80 A
- Number of Poles: 2
- Trip Curve: B
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity (ICU): 30 kA at 125 V DC
- Rated Short Circuit Breaking Capacity (ICU) at 230 VAC: 50 kA
- Rated Short Circuit Breaking Capacity (ICU) at 400 VAC: 50 kA
- Max Rated Operation Voltage: 690 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-70 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25-60 °C
- Dimensions (H x L x W): 100mm x 90mm x 54mm
- Weight: 0.74 kg
Key Features
- 80A rated current with B curve trip characteristics.
- IP40 protection rating for enhanced durability.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 60947.2 for circuit breakers.
Environmental Benefits
- Efficient circuit protection reduces the risk of electrical fires and equipment damage.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10H 2Pole 80A B Curve is available now for immediate purchase. Ideal for residential and commercial electrical systems.
Non-Returnable & Non-Cancellable
