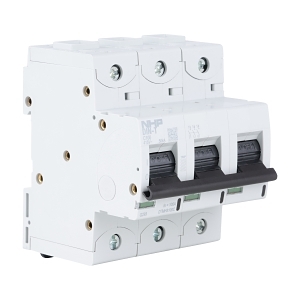

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10H 3Pole 100A D Curve
Brand: NHP
SKU: DTMH3100D
Alternatively Known As: Miniature Circuit Breaker, MCB, 3 Pole Circuit Breaker, 100A Circuit Breaker
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 3
- Trip Curve: D
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity (ICU) at 125 V DC: 30 kA
- Rated Short Circuit Breaking Capacity (ICU) at 230 VAC: 50 kA
- Rated Short Circuit Breaking Capacity (ICU) at 400 VAC: 50 kA
- Max Rated Operation Voltage: 690 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-70 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature without Derating: 30 °C
- Ambient Temperature during Operating: -25-60 °C
- Dimensions (H x L x W): 100mm x 90mm x 81mm
- Weight: 0.74 kg
Key Features
- 3 poles with a rated current of 100 A.
- D curve trip characteristic for high inrush currents.
- IP40 protection degree for dust and moisture resistance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Factories, manufacturing plants
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed to minimize electrical hazards and enhance safety.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10H 3Pole 100A D Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
