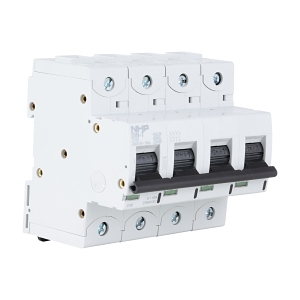

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10H 4Pole 100A B Curve
Brand: NHP
SKU: DTMH4100B
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Breaker 100A, 4 Pole MCB
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 4
- Trip Curve: B
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity: 30 kA
- Rated Short Circuit Breaking Capacity at 230 VAC: 50 kA
- Rated Short Circuit Breaking Capacity at 400 VAC: 50 kA
- Max Rated Operation Voltage: 690 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-70 mm² (solid), 1-50 mm² (multi-wired)
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25-60 °C
- Dimensions (H x L x W): 94mm x 85mm x 108mm
- Weight: 0.84 kg
Key Features
- 4 poles with B curve trip characteristic for overload protection.
- Rated current of 100A suitable for various applications.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment protection
- Commercial: Electrical distribution boards
- Residential: Main switchboards and sub-distribution
Standards & Compliance
- Complies with AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety, reducing the risk of fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10H 4Pole 100A B Curve is available now for immediate purchase. Ideal for industrial, commercial, and residential electrical systems.
