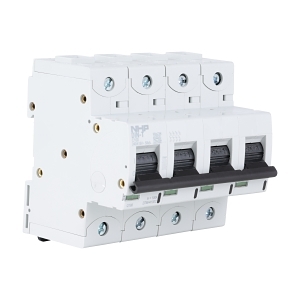

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10H 4Pole 125A D Curve
Brand: NHP
SKU: DTMH4125D
Alternatively Known As: Miniature Circuit Breaker, MCB, 4 Pole Circuit Breaker, 125A Circuit Breaker
Technical Specifications
- Rated Current: 125 A
- Number of Poles: 4
- Trip Curve: D
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity (ICU): 30 kA at 125 V DC
- Rated Short Circuit Breaking Capacity (ICU) at 230 VAC: 50 kA
- Rated Short Circuit Breaking Capacity (ICU) at 400 VAC: 50 kA
- Degree of Protection: IP40
- Conductor Cross Section (Solid Core): 1-70 mm²
- Conductor Cross Section (Multi-Wired): 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Operating Temperature: -25 to 60 °C
- Dimensions (H x L x W): 94mm x 85mm x 108mm
- Weight: 0.84 kg
Key Features
- 4 poles with a D curve for high inrush current applications.
- Rated current of 125A and a maximum rated operation voltage of 690V.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Electrical distribution systems
- Commercial: Power protection in buildings
- General: Circuit protection in various electrical installations
Standards & Compliance
- Complies with AS/NZS 60947.2 for circuit breakers.
Environmental Benefits
- Designed to enhance safety and reliability in electrical systems, reducing the risk of electrical fires.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10H 4Pole 125A D Curve is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
