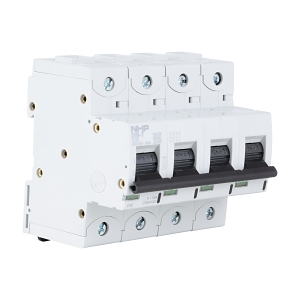

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10H 4Pole C Curve
Brand: NHP
SKU: DTMH480B
Alternatively Known As: Miniature Circuit Breaker, MCB, 4 Pole Circuit Breaker
Technical Specifications
- Rated Current: 80 A
- Number of Poles: 4
- Trip Curve: B
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity (ICU): 30 kA
- Rated Short Circuit Breaking Capacity (ICU) at 230 VAC: 50 kA
- Rated Short Circuit Breaking Capacity (ICU) at 400 VAC: 50 kA
- Max Rated Operation Voltage: 690 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-70 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25-60 °C
- Dimensions (H x L x W): 94mm x 85mm x 108mm
- Weight: 0.84 kg
Key Features
- 4 poles with B curve trip characteristic for reliable protection.
- Rated current of 80 A suitable for various applications.
- High breaking capacity of 50 kA at 400 VAC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment protection
- Commercial: Electrical distribution systems
- Residential: Circuit protection in homes
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide temperature range.
Warranty Information
Standard warranty applies.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10H 4Pole C Curve is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
