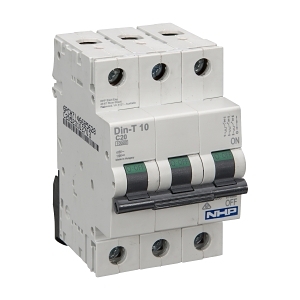

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10kA 3Pole 10A C Curve
Brand: NHP
SKU: DTCB10310C
Alternatively Known As: Miniature Circuit Breaker, MCB, 10A Circuit Breaker, 3 Pole Circuit Breaker
Technical Specifications
- Rated Current: 10 A
- Number of Poles: 3
- Trip Curve: C
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 10 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid core), 1-25 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25-70 °C
- Dimensions (H x L x W): 86mm x 76mm x 54mm
- Weight: 0.36 kg
Key Features
- 10kA short circuit breaking capacity.
- C curve trip characteristic suitable for general applications.
- 3 poles for three-phase systems.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety and reliability.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10kA 3Pole 10A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
