DTCB10306B

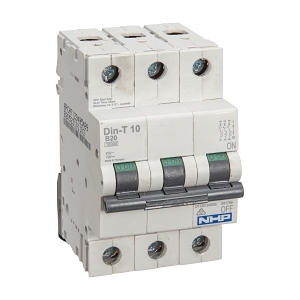

NHP DIN-T Miniature Circuit Breaker 10kA 3Pole 6A B Curve


$179.10 List price: $237.80
+

Weight: 0.360 kg

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10kA 3Pole 6A B Curve

Brand: NHP

SKU: DTCB10306B

Alternatively Known As: Miniature Circuit Breaker, MCB, 10kA Circuit Breaker, 3 Pole Circuit Breaker

Technical Specifications
  • Rated Current: 6 A
  • Number of Poles: 3
  • Trip Curve: B
  • Rated Voltage: 415 V
  • Frequency: 50-60 Hz
  • Voltage Type: AC/DC
  • Rated Short Circuit Breaking Capacity: 10 kA
  • Degree of Protection: IP40
  • Rated Insulation Voltage: 440 V
  • Rated Impulse Withstand Voltage: 6 kV
  • Pollution Degree: 3
  • Rated Surrounding Temperature: 30 °C
  • Dimensions (H x L x W): 86mm x 76mm x 54mm
  • Weight: 0.36 kg
Key Features
  • 10kA short circuit breaking capacity
  • B curve trip characteristic for general applications
  • IP40 protection rating
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
  • Complies with AS/NZS 60898 and AS/NZS 60947 for safety and performance standards.
Environmental Benefits
  • Enhances electrical safety, reducing the risk of fire hazards.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Miniature Circuit Breaker 10kA 3Pole 6A B Curve is available now for immediate purchase. Ideal for residential and commercial electrical systems.

Non-Returnable & Non-Cancellable
