DTCBD6202C

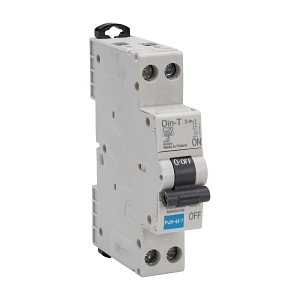

NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 2Pole 2A 18mm Width


$279.40 List price: $371.00
+

Brand: NHP

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 2Pole 2A 18mm Width

Brand: NHP

SKU: DTCBD6202C

Alternatively Known As: Miniature Circuit Breaker, MCB, DIN Rail Circuit Breaker

Technical Specifications
  • Rated Current: 2 A
  • Number of Poles: 2
  • Trip Curve: C
  • Rated Voltage: 415 V
  • Frequency: 50-60 Hz
  • Voltage Type: AC/DC
  • Rated Short Circuit Breaking Capacity: 6 kA
  • Degree of Protection: IP40
  • Connectable Conductor Cross Section: 1-16 mm² (solid), 1-10 mm² (multi-wired)
  • Rated Insulation Voltage: 400 V
  • Rated Impulse Withstand Voltage: 6 kV
  • Pollution Degree: 3
  • Operating Temperature: -25 to 55 °C
  • Dimensions (H x L x W): 86mm x 76mm x 18mm
  • Weight: 0.16 kg
Key Features
  • 6kA breaking capacity for reliable circuit protection.
  • C curve trip characteristic suitable for general applications.
  • Compact 18mm width for space-saving installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 60898 and AS/NZS 60947 for safety and performance standards.
Environmental Benefits
  • Designed to enhance electrical safety and reduce fire hazards.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Miniature Circuit Breaker is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
