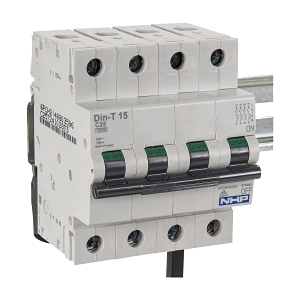

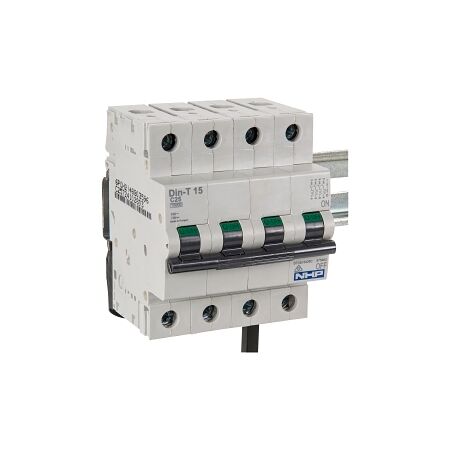

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 20kA 4Pole 40A C Curve
Brand: NHP
SKU: DTCB15440C
Alternatively Known As: MCB, Miniature Circuit Breaker, 4 Pole Circuit Breaker
- Rated Current: 40 A
- Number of Poles: 4
- Trip Curve: C
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 20 kA at 400 VAC
- Degree of Protection: IP40
- Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Pollution Degree: 3
- Operating Temperature: -25 to 70 °C
- Dimensions (H x L x W): 86mm x 76mm x 72mm
- Weight: 0.48 kg
- 20kA short circuit breaking capacity
- 4 poles with C curve trip characteristic
- Rated current of 40A
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
- Complies with AS/NZS 60947.2 for circuit breakers.
- Designed to enhance electrical safety and reduce fire hazards.
1 year warranty against manufacturing defects.
The NHP DIN-T Miniature Circuit Breaker 20kA 4Pole 40A C Curve is available now for immediate purchase. Ideal for residential and commercial electrical systems.
