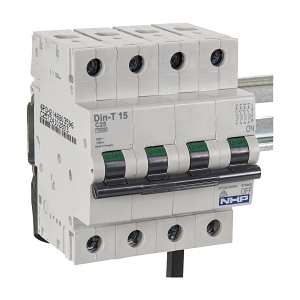

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 25kA 4Pole 13A C Curve
Brand: NHP
SKU: DTCB15413C
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 13 A
- Number of Poles: 4
- Trip Curve: C
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 25 kA at 400 VAC
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Dimensions (H x L x W): 86mm x 76mm x 72mm
- Weight: 0.48 kg
Key Features
- 4-pole design for comprehensive circuit protection.
- C curve trip characteristic suitable for general applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
- Complies with AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety and reduce fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker 25kA 4Pole 13A C Curve is available now for immediate purchase. Ideal for residential and commercial electrical protection.
