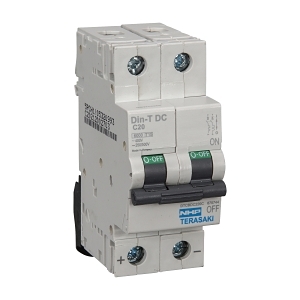

Product Name/Title: NHP DIN-T Miniature Circuit Breaker DC 6kA 2Pole 2A C Curve
Brand: NHP
SKU: DTCBDC202C
Alternatively Known As: Miniature Circuit Breaker, MCB, DC Circuit Breaker, 2 Pole Circuit Breaker
Technical Specifications
- Rated Current: 2 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity (ICU) at 125 V DC: 10 kA
- Service Voltage (AC/DC): 12 V
- Nominal Operating Voltage (DC): 500 V
- Rated Short Circuit Breaking Capacity (ICN) at 230 VAC: 6 kA
- Rated Short Circuit Breaking Capacity (ICN) at 400 VAC: 6 kA
- Max Rated Operation Voltage: 440 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-35 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-25 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25-70 °C
- Dimensions (H x L x W): 86mm x 76mm x 36mm
- Weight: 0.13 kg
Key Features
- C Curve trip characteristic for moderate inrush currents.
- Rated current of 2A with a breaking capacity of 6kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small electrical installations
- Commercial: Offices and retail spaces requiring circuit protection
- Industrial: Machinery and equipment requiring reliable circuit breakers
Standards & Compliance
- Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Designed for efficient operation in a wide temperature range.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker DC 6kA 2Pole 2A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications requiring reliable circuit protection.
