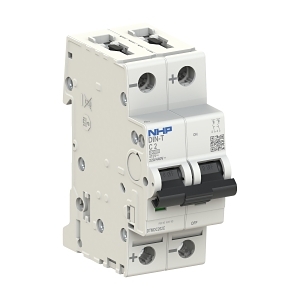

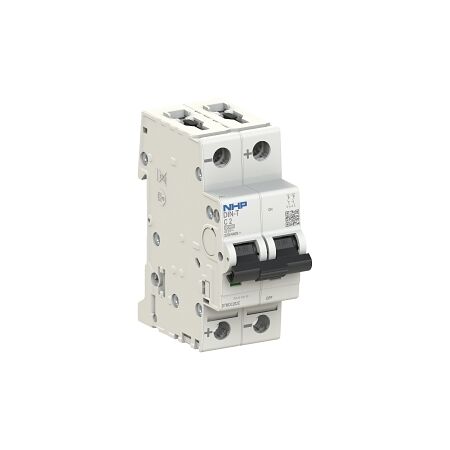

Product Name/Title: NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 2 Pole 1A C Curve
Brand: NHP
SKU: DTMDC201C
Alternatively Known As: Miniature Circuit Breaker, MCB, DC Circuit Breaker, 2 Pole Circuit Breaker
Technical Specifications
- Rated Current: 1 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 440 V
- Frequency: 50-60 Hz
- Voltage Type: DC
- Rated Short Circuit Breaking Capacity: 10 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 0.75-35 mm² (solid core), 0.75-25 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25-70 °C
- Dimensions (H x L x W): 85mm x 75.8mm x 35mm
- Weight: 0.2 kg
Key Features
- Rated current of 1A with a C curve trip characteristic.
- 10kA short circuit breaking capacity.
- Suitable for DC applications with a maximum rated operation voltage of 500V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small electrical installations
- Commercial: Offices and retail spaces requiring circuit protection
- Industrial: Machinery and equipment requiring reliable circuit interruption
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 2 Pole 1A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications requiring reliable circuit protection.
