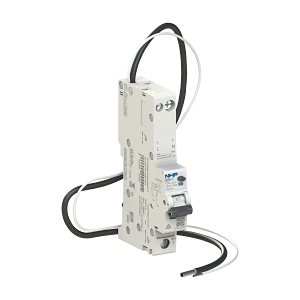

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Neutral 40A C Curve 100mA Type A (Longbody)
Brand: NHP
SKU: DTRL40100A
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 40 A
- Rated Voltage: 240 V
- Rated Leakage Current: 100 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 184 V
- Max Operating Voltage: 264 V
- Rated Residual Make Break Capacity: 10000 A
- Number of Poles Total: 2
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-35 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-25 mm²
- Operating Temperature: -25 to 55 °C
- Dimensions (H x L x W): 117mm x 75.8mm x 17.5mm
- Weight: 0.2 kg
Key Features
- 10kA short circuit breaking capacity
- C curve tripping characteristic for general applications
- IP40 degree of protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Reduced maintenance and longer service life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Neutral 40A C Curve 100mA Type A (Longbody) is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
