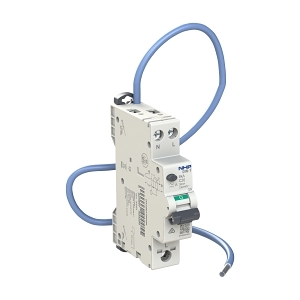

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Switched Neutral 10A B Curve 30mA Type A
Brand: NHP
SKU: DTRS1030AB
Alternatively Known As: Residual Current Device, RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 10 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: B
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 160 V
- Max Operating Voltage: 264 V
- Rated Residual Make Break Capacity: 3000 A
- Number of Poles Total: 2
- Degree of Protection: IP40
- Mechanical Life: 20000 cycles
- Operating Temperature: -25 to 55 °C
- Dimensions (H x L x W): 86mm x 75mm x 18mm
- Weight: 0.17 kg
Key Features
- 10kA short circuit breaking capacity
- 30mA leakage current protection
- B curve tripping characteristic for general applications
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Switched Neutral 10A B Curve 30mA Type A is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable electrical protection.
Non-Returnable & Non-Cancellable
