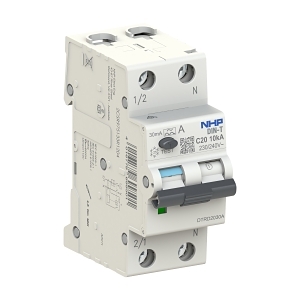

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Switched Neutral 16A C Curve 30mA Type AI
Brand: NHP
SKU: DTRD1630AI
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker
- Rated Current: 16 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 110 V
- Max Operating Voltage: 264 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Degree of Protection: IP40
- Mechanical Life: 20000 cycles
- Operating Temperature: -25 to 70 °C
- Dimensions (H x L x W): 85mm x 75mm x 35mm
- Weight: 0.2 kg
- 10kA short circuit breaking capacity
- 30mA residual current rating for enhanced safety
- C curve for general applications
- DIN rail mounting for easy installation
- IP40 protection rating
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
- Complies with AS/NZS 61009 for safety and performance standards.
- Designed to enhance electrical safety and reduce the risk of electrical fires.
2 years warranty against manufacturing defects.
The NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Switched Neutral 16A C Curve 30mA Type AI is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
