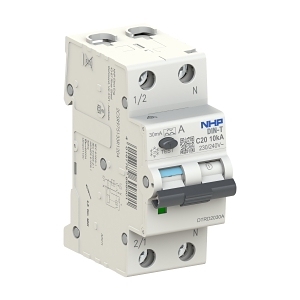

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Switched Neutral 25A C Curve 30mA Type AI
Brand: NHP
SKU: DTRD2530AI
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 25 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 110 V
- Max Operating Voltage: 264 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Degree of Protection: IP40
- Mechanical Life: 20000 cycles
- Operating Temperature: -25 to 70 °C
- Dimensions (H x L x W): 85mm x 75mm x 35mm
- Weight: 0.2 kg
Key Features
- 10 kA short circuit breaking capacity
- C curve tripping characteristic for general applications
- Switched neutral for enhanced safety
- IP40 protection rating
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring electrical safety
Standards & Compliance
- Complies with AS/NZS 61009 for residual current devices.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Breaker RCBO 10kA 1 Pole and Switched Neutral 25A C Curve 30mA Type AI is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
Non-Returnable & Non-Cancellable
