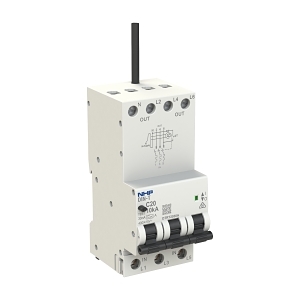

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Neutral 25A C Curve 100mA Type A (Longbody)
Brand: NHP
SKU: DTRT25100A
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker, RCD
Technical Specifications
- Rated Current: 25 A
- Rated Voltage: 415 V
- Rated Leakage Current: 100 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 207 V
- Max Operating Voltage: 457 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 4
- Number of Protected Poles: 3
- Degree of Protection: IP40
- Mechanical Life: 20000 cycles
- Electrical Life: 10000 cycles
- Connectable Conductor Cross Section: 1-25 mm² (solid), 1-16 mm² (multi-wired)
- Dimensions (H x L x W): 117.5mm x 77.1mm x 54mm
- Weight: 0.55 kg
Key Features
- 10 kA short circuit breaking capacity
- 100 mA rated leakage current
- C curve tripping characteristic
- DIN rail mounting for easy installation
- IP40 degree of protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
- General: Any electrical installation requiring residual current protection
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Reduced maintenance and longer service life.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Neutral 25A C Curve 100mA Type A (Longbody) is available now for immediate purchase. Ideal for residential and commercial electrical installations.
