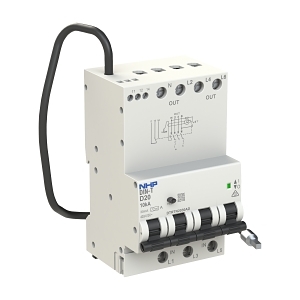

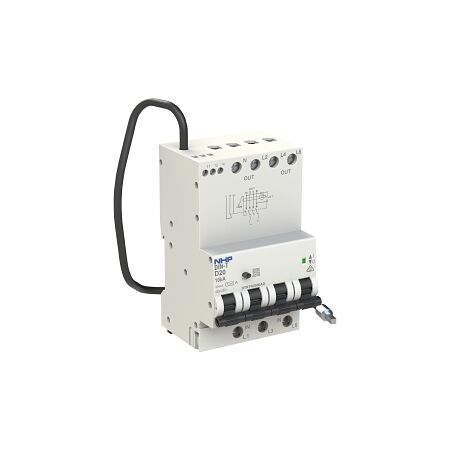

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Switched Neutral 50A D Curve 30mA Type A
Brand: NHP
SKU: DTRTN5030AD
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker
- Rated Current: 50 A
- Rated Voltage: 415 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Trip Curve: D
- Degree of Protection: IP40
- Number of Poles: 4
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 117.5mm x 77.1mm x 72mm
- Weight: 0.64 kg
- 10 kA short circuit breaking capacity
- 30 mA leakage current protection
- D curve for high inrush current applications
- DIN rail mounting for easy installation
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small commercial buildings
- Commercial: Retail and office spaces requiring electrical safety
- Complies with AS/NZS 61009 for safety and performance standards.
- Designed to enhance electrical safety and reduce the risk of electrical fires.
2 years warranty against manufacturing defects.
The NHP DIN-T Residual Current Breaker RCBO is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
