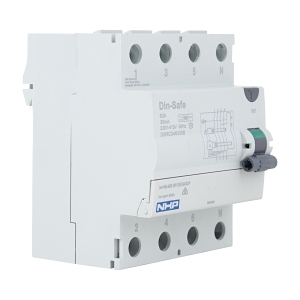

Product Name/Title: NHP DIN-T Residual Current Circuit Breaker RCCB 3Pole and Neutral 63A 30mA Type B
Brand: NHP
SKU: DSRCD46330B
Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD, Type B RCCB
Technical Specifications
- Number of Poles: 4
- Voltage Type: AC
- Frequency: 50/60 Hz
- Rated Current: 63 A
- Leakage Current Type: B
- Rated Leakage Current: 30 mA
- Min Service Voltage: 205 V
- Max Rated Operation Voltage (UE AC): 455 V
- Rated Insulation Voltage (UI): 440 V
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Rated Fault Current: 10000 A
- Electrical Life at Un in Service Cycles: 10000 cycles
- Degree of Protection: IP20
- Connectable Conductor Cross Section (Solid Core): 50-50 mm²
- Mechanical Life Service Cycles: 20000 cycles
- Operating Temperature: 55 °C
- Ambient Temperature During Operating: -25-55 °C
- Storage Temperature: 70 °C
- Pollution Degree: 2
- Dimensions (H x L x W): 86mm x 76mm x 72mm
- Weight: 0.37 kg
Key Features
- 3 Pole and Neutral design for enhanced safety.
- Rated current of 63A and leakage current of 30mA.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
- Designed for efficient operation in a wide temperature range.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Circuit Breaker RCCB 3Pole and Neutral 63A 30mA Type B is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
