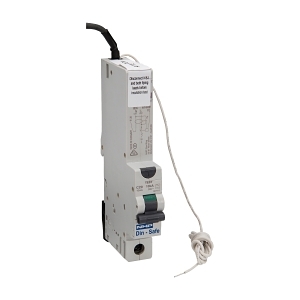

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 10A 1Pole and N C Curve 10mA Type A
Brand: NHP
SKU: DSRCBH1010A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
- Rated Current: 10 A
- Rated Voltage: 240 V
- Rated Leakage Current: 10 mA
- Frequency: 50/60 Hz
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 265 V
- Rated Insulation Voltage: 500 V
- Degree of Protection: IP20
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.35 kg
- 10kA short circuit breaking capacity
- Type A leakage current protection
- C curve tripping for general applications
- DIN rail mounting for easy installation
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring overcurrent protection
- Complies with AS/NZS 61009 for safety and performance standards.
- Designed to enhance electrical safety and reduce the risk of electrical fires.
1 year warranty against manufacturing defects.
The NHP DIN-T Residual Current Device Long Body with Overcurrent 10kA 10A is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable electrical protection.
