Making Trade Life Easy!

Home/Electrical/Switchgear/MCB/RCD RCBO Combos/NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 16A 1Pole and N C Curve 100mA Type A

Trade Discount 25%

SKU: DSRCBH16100A

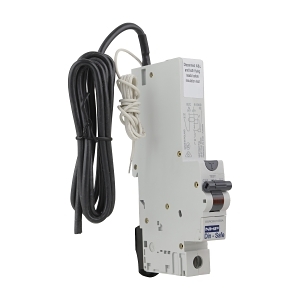

NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 16A 1Pole and N C Curve 100mA Type A

$133.70 List price: $177.50

+ −

30 Days Return Delivery Options

Brand: NHP

Description

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 16A 1Pole and N C Curve 100mA Type A

Brand: NHP

SKU: DSRCBH16100A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 16 A
Rated Voltage: 240 V
Rated Leakage Current: 100 mA
Frequency: 50/60 Hz
Trip Curve: C
Rated Impulse Withstand Voltage: 6 kV
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Degree of Protection: IP20
Operating Temperature: -5 to 55 °C
Dimensions (H x L x W): 125mm x 76mm x 18mm
Weight: 0.35 kg

Key Features

10kA short circuit breaking capacity
100mA leakage current rating
C curve tripping characteristic
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, offices
Commercial: Retail, hospitality, workspaces
General: Any location requiring electrical safety devices

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Helps prevent electrical hazards and enhances safety.

Warranty Information

Standard warranty applies.

Available Now

The NHP DIN-T Residual Current Device Long Body is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
