DSRCBH1610A

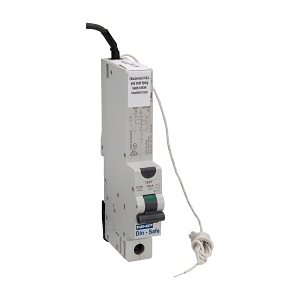

NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 16A 1Pole and N C Curve 10mA Type A


$133.70 List price: $177.50
+

Brand: NHP

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 16A 1Pole and N C Curve 10mA Type A

Brand: NHP

SKU: DSRCBH1610A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications
  • Rated Current: 16 A
  • Rated Voltage: 240 V
  • Rated Leakage Current: 10 mA
  • Frequency: 50/60 Hz
  • Trip Curve: C
  • Rated Impulse Withstand Voltage: 6 kV
  • Tripping Time: 40 ms
  • Min Service Voltage: 195 V
  • Max Operating Voltage: 265 V
  • Rated Insulation Voltage: 500 V
  • Degree of Protection: IP20
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 20,000 cycles
  • Operating Temperature: -5 to 55 °C
  • Dimensions (H x L x W): 125mm x 76mm x 18mm
  • Weight: 0.35 kg
Key Features
  • 10kA short circuit breaking capacity
  • 16A rated current with 10mA leakage protection
  • C curve trip characteristic for general applications
  • DIN rail mounting for easy installation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
  • Designed to enhance electrical safety and reduce the risk of electrical fires.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device Long Body with Overcurrent is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
