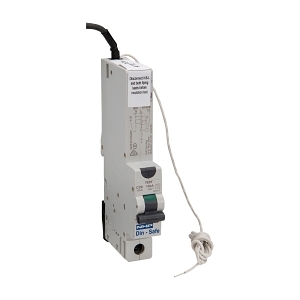

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 20A 1Pole and N C Curve 10mA Type A
Brand: NHP
SKU: DSRCBH2010A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker, Residual Current Circuit Breaker
- Rated Current: 20 A
- Rated Voltage: 240 V
- Rated Leakage Current: 10 mA
- Frequency: 50/60 Hz
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 265 V
- Rated Insulation Voltage: 500 V
- Degree of Protection: IP20
- Mounting Method: DIN rail (top hat rail) 35 mm
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.35 kg
- Long body design for easy installation in DIN rail systems.
- 10kA short circuit breaking capacity for enhanced safety.
- Type A leakage current protection for sensitive electronic devices.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
- Complies with AS/NZS 61009 for safety and performance standards.
- Designed to enhance electrical safety and reduce the risk of electrical fires.
2 years warranty against manufacturing defects.
The NHP DIN-T Residual Current Device Long Body with Overcurrent is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
