Home/Electrical/Switchgear/MCB/RCD RCBO Combos/NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 25A 1Pole and N C Curve 10mA Type A

Trade Discount 25%

SKU: DSRCBH2510A

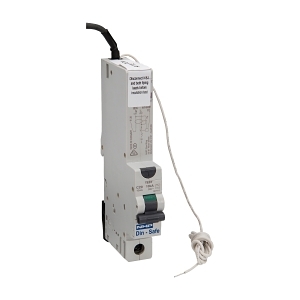

NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 25A 1Pole and N C Curve 10mA Type A

$133.70 List price: $177.50

+ −

30 Days Return Delivery Options

Brand: NHP

Description

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 25A 1Pole and N C Curve 10mA Type A

Brand: NHP

SKU: DSRCBH2510A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 25 A
Rated Voltage: 240 V
Rated Leakage Current: 10 mA
Frequency: 50/60 Hz
Trip Curve: C
Rated Impulse Withstand Voltage: 6 kV
Tripping Time: 40 ms
Mounting Method: DIN rail (top hat rail) 35 mm
Degree of Protection: IP20
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Operating Temperature: -5 to 55 °C
Dimensions (H x L x W): 125mm x 76mm x 18mm
Weight: 0.35 kg

Key Features

Long body design for easy installation on DIN rail.
10kA short circuit breaking capacity.
Type A leakage current protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Machinery and equipment protection

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 25A 1Pole and N C Curve 10mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

Non-Returnable & Non-Cancellable
