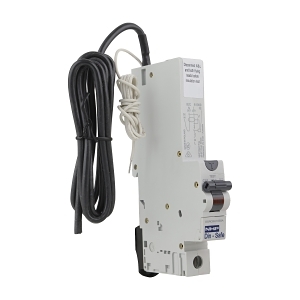

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 32A 1Pole and N C Curve 100mA Type A
Brand: NHP
SKU: DSRCBH32100A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker, Residual Current Circuit Breaker
Technical Specifications
- Rated Current: 32 A
- Rated Voltage: 240 V
- Rated Leakage Current: 100 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 265 V
- Rated Residual Make Break Capacity: 10000 A
- Number of Poles: 1
- Degree of Protection: IP20
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.35 kg
Key Features
- 10kA short circuit breaking capacity
- 100mA leakage current rating
- C curve tripping characteristic
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety and reduce the risk of electrical fires.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Long Body with Overcurrent is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
