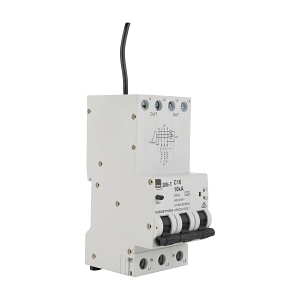

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 40A 3Pole and N C Curve 100mA Type A
Brand: NHP
SKU: DSRCBT40100A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
- Rated Current: 40 A
- Rated Voltage: 415 V
- Frequency: 50/60 Hz
- Voltage Type: AC
- Tripping Time: 300 ms
- Rated Impulse Withstand Voltage: 4 kV
- Rated Insulation Voltage: 500 V
- Degree of Protection: IP20
- Number of Poles: 3
- Dimensions (H x L x W): 117.5mm x 71.6mm x 53.4mm
- Weight: 0.55 kg
- 10kA short circuit breaking capacity
- Rated leakage current of 100mA
- C curve tripping characteristic for better protection
- DIN rail mounting for easy installation
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
- General: Any electrical installation requiring protection against earth leakage
- Complies with AS/NZS 61009 for safety and performance standards.
- Designed to enhance electrical safety and reduce the risk of electrical fires.
2 years warranty against manufacturing defects.
The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical installations requiring earth leakage protection.
