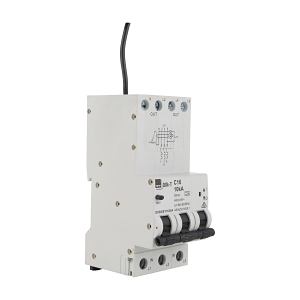

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 50A 3Pole and N C Curve 100mA Type A
Brand: NHP
SKU: DSRCBT50100A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
- Rated Current: 50 A
- Rated Voltage: 415 V
- Rated Leakage Current: 100 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Rated Insulation Voltage: 500 V
- Degree of Protection: IP20
- Number of Poles: 3
- Dimensions (H x L x W): 117.5mm x 71.6mm x 53.4mm
- Weight: 0.55 kg
- 10kA short circuit breaking capacity
- 100mA residual current rating
- C curve tripping characteristic
- DIN rail mounting for easy installation
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
- Complies with AS/NZS 61009 for safety and performance standards.
- Helps prevent electrical hazards and enhances safety in electrical installations.
Standard warranty applies, please check with the manufacturer for details.
The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
