DSRCBT50300A

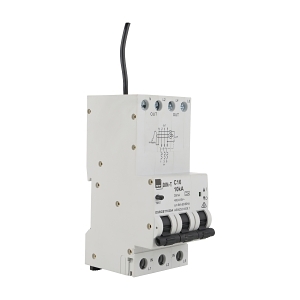

NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 50A 3Pole and N C Curve 300mA Type A


$673.70 List price: $894.60
+

Brand: NHP

Product Name/Title: NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 50A 3Pole and N C Curve 300mA Type A

Brand: NHP

SKU: DSRCBT50300A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications
  • Rated Current: 50 A
  • Rated Voltage: 415 V
  • Rated Leakage Current: 300 mA
  • Frequency: 50/60 Hz
  • Trip Curve: C
  • Rated Impulse Withstand Voltage: 4 kV
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 20,000 cycles
  • Degree of Protection: IP20
  • Mounting Method: DIN rail (top hat rail) 35 mm
  • Dimensions (H x L x W): 117.5mm x 71.6mm x 53.4mm
  • Weight: 0.55 kg
Key Features
  • 10kA short circuit breaking capacity
  • 300mA residual current rating
  • C curve tripping characteristic
  • DIN rail mounting for easy installation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
  • Helps prevent electrical hazards and enhances safety in electrical installations.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
