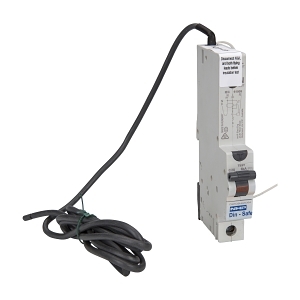

Product Name/Title: NHP DIN-T Residual Current Device Long Body with Overcurrent 6kA 6A 1Pole and N C Curve 30mA Type A
Brand: NHP
SKU: DSRCBH60630A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
- Rated Current: 6 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Degree of Protection: IP20
- Mounting Method: DIN rail (top hat rail) 35 mm
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.35 kg
- 6kA short circuit breaking capacity
- 30mA residual current rating
- C curve tripping characteristic
- DIN rail mounting for easy installation
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring electrical safety devices
- Complies with AS/NZS 61009 for safety and performance standards.
- Helps prevent electrical hazards and enhances safety.
2 years warranty against manufacturing defects.
The NHP DIN-T Residual Current Device Long Body is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
