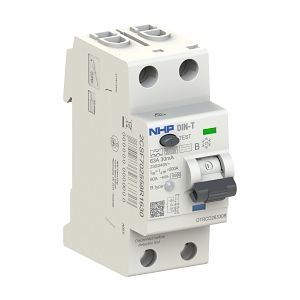

Product Name/Title: NHP DIN-T Residual Current Device RCCB 1 Pole and Switched Neutral 63A 30mA Type B
Brand: NHP
SKU: DTRCD26330B
Alternatively Known As: RCCB, Residual Current Circuit Breaker, Type B RCD
Technical Specifications
- Number of Poles: 2
- Voltage Type: AC
- Frequency: 50/60 Hz
- Rated Current: 63 A
- Leakage Current Type: B
- Rated Leakage Current: 30 mA
- Min Service Voltage: 110 V
- Max Rated Operation Voltage: 264 V
- Rated Insulation Voltage: 500 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Fault Current: 10000 A
- Electrical Life: 10000 cycles
- Surge Current Capacity: 3 kA
- Degree of Protection: IP40
- Operating Temperature: 50 °C
- Ambient Temperature: -25 to 50 °C
- Storage Temperature: 70 °C
- Pollution Degree: 2
- Dimensions (H x L x W): 85mm x 75mm x 35mm
- Weight: 0.2 kg
Key Features
- Type B RCCB suitable for various leakage current types.
- Switched neutral for enhanced safety and convenience.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
- Designed to enhance electrical safety and reduce the risk of electrical fires.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device RCCB 1 Pole and Switched Neutral 63A 30mA Type B is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
