DTRCD463100S

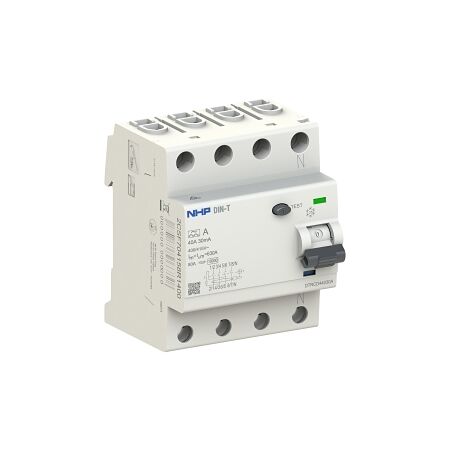

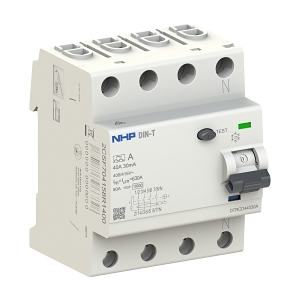

NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 63A 100mA Type S

$785.10 List price: $1,042.50
+ −
30 Days Return Delivery Options
Brand: NHP

Product Name/Title: NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 63A 100mA Type S

Brand: NHP

SKU: DTRCD463100S

Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD, Type S RCCB

Technical Specifications
  • Number of Poles: 4
  • Voltage Type: AC
  • Frequency: 50/60 Hz
  • Rated Current: 63 A
  • Rated Leakage Current: 100 mA
  • Min Service Voltage: 230 V
  • Max Rated Operation Voltage: 456 V
  • Rated Insulation Voltage: 500 V
  • Rated Impulse Withstand Voltage: 4 kV
  • Rated Fault Current: 10000 A
  • Surge Current Capacity: 5 kA
  • Degree of Protection: IP40
  • Operating Temperature: 70 °C
  • Ambient Temperature During Operating: -25-70 °C
  • Storage Temperature: 70 °C
  • Pollution Degree: 2
  • Dimensions (H x L x W): 85mm x 75mm x 70mm
  • Weight: 0.38 kg
Key Features
  • 3 Pole and Switched Neutral design for enhanced safety.
  • Rated current of 63A and leakage current of 100mA.
  • DIN rail mounting for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
  • Designed to enhance electrical safety and reduce the risk of electrical fires.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 63A 100mA Type S is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
