SKU: DSRCB10100A

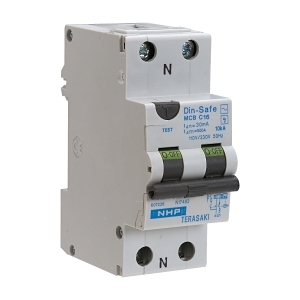

NHP DIN-T Residual Current Device Short Body w/ Overcurr 10kA 10A 1Pole and N C Curve 100mA Type A

$188.60 List price: $250.40

+ −

30 Days Return Delivery Options

Brand: NHP

Description

Product Name/Title: NHP DIN-T Residual Current Device Short Body w/ Overcurr 10kA 10A 1Pole and N C Curve 100mA Type A

Brand: NHP

SKU: DSRCB10100A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 10 A
Rated Voltage: 240 V
Rated Leakage Current: 100 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 10 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 6 kV
Tripping Time: 40 ms
Min Service Voltage: 117 V
Max Operating Voltage: 255 V
Rated Residual Make Break Capacity: 6000 A
Number of Poles Total: 2
Number of Protected Poles: 1
Electrical Life: 10000 cycles
Mechanical Life: 20000 cycles
Degree of Protection: IP20
Operating Temperature: -5 to 55 °C
Dimensions (H x L x W): 86mm x 68mm x 36mm
Weight: 0.25 kg

Key Features

10kA short circuit breaking capacity
100mA leakage current rating
C curve tripping characteristic
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring electrical safety

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Designed to enhance electrical safety and reduce the risk of electrical fires.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
