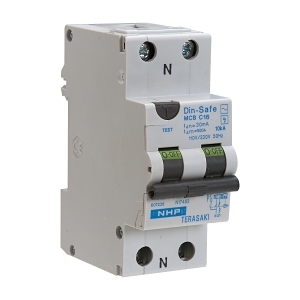

Product Name/Title: NHP DIN-T Residual Current Device Short Body w/ Overcurr 10kA 16A 1Pole and N C Curve 100mA Type A
Brand: NHP
SKU: DSRCB16100A
Alternatively Known As: Residual Current Circuit Breaker, RCD, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 16 A
- Rated Voltage: 240 V
- Rated Leakage Current: 100 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 117 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Electrical Life: 10000 cycles
- Degree of Protection: IP20
- Max Shock Duration: 5 ms
- Max Shock Acceleration: 40 g
- Max Vibration Acceleration: 1.5 m/s²
- Max Vibration Frequency Operational: 80 Hz
- Max Vibration Duration: 30 min
- Operating Temperature: -5-55 °C
- Dimensions (H x L x W): 86mm x 68mm x 36mm
- Weight: 0.25 kg
Key Features
- 10kA short circuit breaking capacity
- 100mA leakage current rating
- C curve trip characteristic
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small commercial buildings
- Commercial: Retail and office spaces requiring electrical safety
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety and reduce the risk of electrical fires.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Short Body with Overcurrent is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
