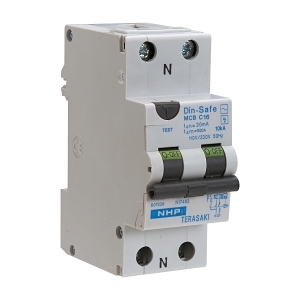

Product Name/Title: NHP DIN-T Residual Current Device Short Body w/ Overcurrent 10kA 25A 1Pole and N C Curve 30mA Type A
Brand: NHP
SKU: DSRCB2530A
Alternatively Known As: RCD, RCBO, Residual Current Circuit Breaker, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 25 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 100 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Degree of Protection: IP20
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 86mm x 68mm x 36mm
- Weight: 0.25 kg
Key Features
- 10kA short circuit breaking capacity
- 30mA residual current rating for enhanced safety
- Compact design for easy installation in DIN rail systems
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety and reduce the risk of electrical fires.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device Short Body is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
