Home/Electrical/Switchgear/MCB/RCD RCBO Combos/NHP DIN-T Residual Current Device Short Body w/ Overcurrent 10kA 6A 1Pole and N C Curve 30mA Type AC

Trade Discount 25%

SKU: DSRCB0630P

BRAND: NHP

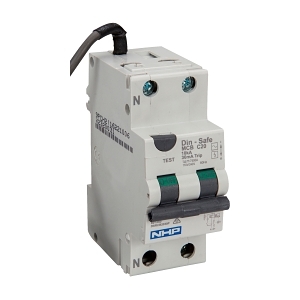

NHP DIN-T Residual Current Device Short Body w/ Overcurrent 10kA 6A 1Pole and N C Curve 30mA Type AC

$190.60 List price: $253.00

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device Short Body w/ Overcurrent 10kA 6A 1Pole and N C Curve 30mA Type AC

Brand: NHP

SKU: DSRCB0630P

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 6 A
Rated Voltage: 240 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 10 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 6 kV
Tripping Time: 40 ms
Min Service Voltage: 117 V
Max Operating Voltage: 255 V
Rated Residual Make Break Capacity: 6000 A
Number of Poles: 2
Degree of Protection: IP20
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Operating Temperature: -5 to 55 °C
Dimensions (H x L x W): 86mm x 68mm x 36mm
Weight: 0.25 kg

Key Features

10kA short circuit breaking capacity
30mA residual current rating
C curve trip characteristic
Compact 36mm width for space-saving installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 61009 for residual current devices.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

Non-Returnable & Non-Cancellable

DSRCB0630P-AU-RCBO-10kA-1P-and-N-36mm-with-pigtail-Datasheet.pdf (DSRCB0630P-AU-RCBO-10kA-1P-and-N-36mm-with-pigtail-Datasheet.pdf, 277 Kb) [Download]
