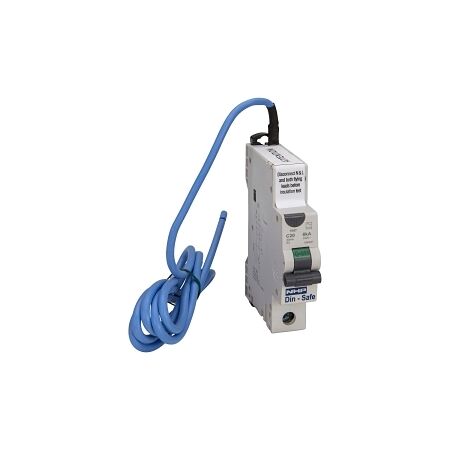

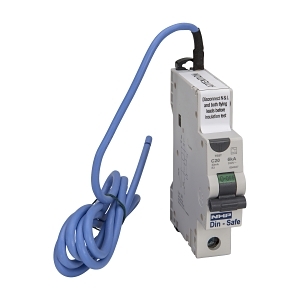

Product Name/Title: NHP DIN-T Residual Current Device Short Body w/ Overcurrent 6kA 6A 1Pole and N C Curve 10mA Type A
Brand: NHP
SKU: DSRCBS0610CAN
Alternatively Known As: RCD, Residual Current Device, Earth Leakage Circuit Breaker, RCBO
Technical Specifications
- Rated Current: 6 A
- Rated Voltage: 240 V
- Rated Leakage Current: 10 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles: 1
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Operating Temperature: -5 to 60 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.22 kg
Key Features
- Compact 18mm design for space-saving installation.
- Rated current of 6A with a leakage current of 10mA.
- Trip curve type C for standard applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any application requiring protection against electrical leakage
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety and reduce the risk of electrical fires.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring electrical safety.
