MD6MS3100

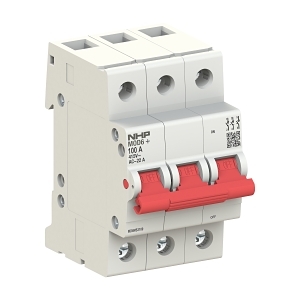

NHP MOD6+ Main Switch 3 Pole 100A


$38.60 List price: $51.20
+

Weight: 0.270 kg

Product Name/Title: NHP MOD6+ Main Switch 3 Pole 100A

Brand: NHP

SKU: MD6MS3100

Alternatively Known As: 3 Pole Main Switch, 100A Circuit Breaker, NHP MOD6+ Switch

Technical Specifications
  • Rated Current: 100 A
  • Number of Poles: 3
  • Rated Voltage: 415 V
  • Frequency: 50-60 Hz
  • Voltage Type: AC
  • Max Rated Operation Voltage: 436 V
  • Rated Insulation Voltage: 440 V
  • Rated Impulse Withstand Voltage: 4 kV
  • Degree of Protection: IP40
  • Connectable Conductor Cross Section: 1-50 mm²
  • Pollution Degree: 3
  • Rated Surrounding Temperature: 35 °C
  • Ambient Temperature During Operating: -25-55 °C
  • Dimensions (H x L x W): 85mm x 75.8mm x 52.5mm
  • Weight: 0.27 kg
Key Features
  • 3 pole design for three-phase applications.
  • Rated current of 100A for robust performance.
  • IP40 rated for protection against solid objects.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring main switching
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and AS/NZS 3820 for essential safety requirements.
Environmental Benefits
  • Energy efficiency and long product life.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6+ Main Switch 3 Pole 100A is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
