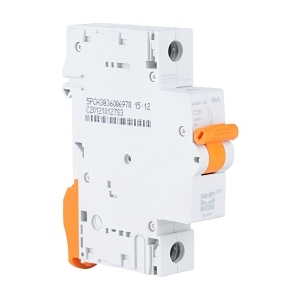

Product Name/Title: NHP MOD6 Miniature Circuit Breaker 6kA 1Pole 6A C Curve
Brand: NHP
SKU: MOD6106
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Breaker 6A
Technical Specifications
- Rated Current: 6 A
- Number of Poles: 1
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 6 kA
- Max Rated Operation Voltage: 250 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-25 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.12 kg
Key Features
- Rated current of 6A with a C curve trip characteristic.
- Short circuit breaking capacity of 6kA.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any application requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety and reduce fire hazards.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP MOD6 Miniature Circuit Breaker 6kA 1Pole 6A C Curve is available now for immediate purchase. Ideal for residential and commercial electrical systems.
