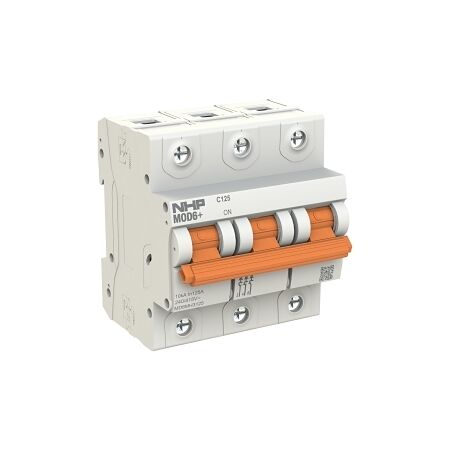

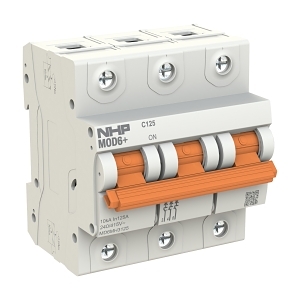

Product Name/Title: NHP MOD6+ Miniature Circuit Breaker MCB 10kA 3 Pole 125A C Curve
Brand: NHP
SKU: MD6MH3125
Alternatively Known As: Miniature Circuit Breaker, MCB, 3 Pole Circuit Breaker, NHP Circuit Breaker
Technical Specifications
- Rated Current: 125 A
- Number of Poles: 3
- Trip Curve: C
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC
- Rated Short Circuit Breaking Capacity: 10 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-50 mm²
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -20-60 °C
- Dimensions (H x L x W): 89.5mm x 80.5mm x 81mm
- Weight: 0.59 kg
Key Features
- 10kA short circuit breaking capacity
- C curve trip characteristic for general applications
- 3 poles for three-phase systems
- IP40 protection rating
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Efficient circuit protection reduces the risk of electrical fires and equipment damage.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP MOD6+ Miniature Circuit Breaker MCB 10kA 3 Pole 125A C Curve is available now for immediate purchase. Ideal for residential and commercial electrical installations.
