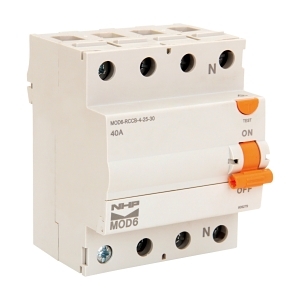

Product Name/Title: NHP MOD6 Residual Current Circuit Breaker RCCB 3PN 63A 30mA Type A
Brand: NHP
SKU: MOD6RCCB46330A
Alternatively Known As: RCCB, Residual Current Device, RCD, Circuit Breaker
Technical Specifications
- Number of Poles: 4
- Voltage Type: AC
- Frequency: 50/60 Hz
- Rated Current: 63 A
- Leakage Current Type: A
- Rated Leakage Current: 30 mA
- Min Service Voltage: 287 V
- Max Rated Operation Voltage (UE AC): 265 V
- Rated Insulation Voltage (Ui): 500 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Rated Fault Current: 6000 A
- Electrical Life at Un in Service Cycles: 10000 cycles
- Mounting Method: DIN rail
- Degree of Protection: IP20
- Connectable Conductor Cross Section (Solid Core): 35-35 mm²
- Mechanical Life Service Cycles: 20000 cycles
- Operating Temperature: 55 °C
- Ambient Temperature During Operating: -25-55 °C
- Storage Temperature: 70 °C
- Pollution Degree: 2
- Explosion Proof: No
- Dimensions (H x L x W): 86mm x 76mm x 72mm
- Weight: 0.37 kg
Key Features
- 4 poles with a rated current of 63A and leakage current of 30mA.
- DIN rail mounting for easy installation.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP MOD6 Residual Current Circuit Breaker RCCB 3PN 63A 30mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
Non-Returnable & Non-Cancellable
