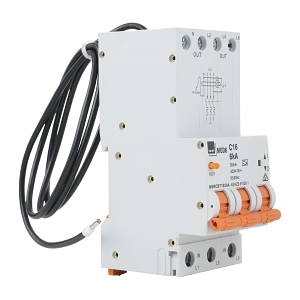

Product Name/Title: NHP MOD6 Residual Current Device - Long body w/ Overcurrent 6kA 16A 3PN C Curve 30mA Type A 54mm
Brand: NHP
SKU: M6RCBT1630A
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 16 A
- Rated Voltage: 415 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 204 V
- Max Operating Voltage: 457 V
- Number of Poles: 4
- Degree of Protection: IP20
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Operating Temperature: -5 to 40 °C
- Dimensions (H x L x W): 117.5mm x 71.6mm x 54mm
- Weight: 0.55 kg
Key Features
- 6kA short circuit breaking capacity
- 30mA leakage current protection
- C curve tripping characteristic
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable electrical protection.
