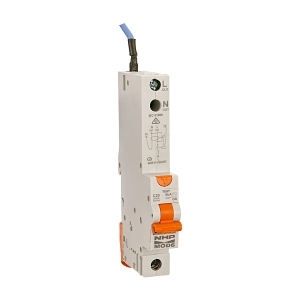

Product Name/Title: NHP MOD6 Residual Current Device - Long body w/ Overcurrent 6kA 32A 1Pole and N C Curve 30mA Type A
Brand: NHP
SKU: MOD6RCBO13230AL
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 32 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles: 1
- Degree of Protection: IP20
- Mounting Method: DIN rail (top hat rail) 35 mm
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 125mm x 76mm x 18mm
- Weight: 0.23 kg
Key Features
- Long body design with pigtail for easy installation.
- Rated current of 32A and leakage current of 30mA.
- 6kA short circuit breaking capacity.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring protection against earth leakage
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable earth leakage protection.
Non-Returnable & Non-Cancellable
