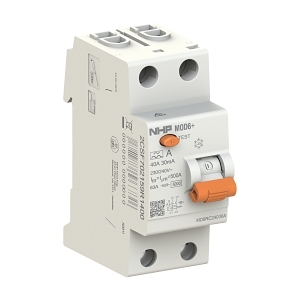

Product Name/Title: NHP MOD6+ Residual Current Device RCCB 1 Pole and Switched N 63A 30mA Type AI
Brand: NHP
SKU: MD6RC26330AI
Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD, Type AI RCCB
Technical Specifications
- Number of Poles: 2
- Voltage Type: AC
- Frequency: 50/60 Hz
- Rated Current: 63 A
- Rated Leakage Current: 30 mA
- Min Service Voltage: 110 V
- Max Rated Operation Voltage: 456 V
- Rated Insulation Voltage: 500 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Fault Current: 6000 A
- Electrical Life: 10000 cycles
- Surge Current Capacity: 3 kA
- Mounting Method: DIN rail
- Degree of Protection: IP40
- Operating Temperature: -5 to 70 °C
- Storage Temperature: -40 to 70 °C
- Dimensions (H x L x W): 88mm x 75mm x 35mm
- Weight: 0.2 kg
Key Features
- 2 Pole design with 30mA leakage current rating for enhanced safety.
- DIN rail mounting for easy installation.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any installation requiring residual current protection
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
- Enhances electrical safety, preventing damage and reducing equipment waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP MOD6+ Residual Current Device RCCB 1 Pole and Switched N 63A 30mA Type AI is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable electrical safety.
