M6RCBS1610CAN

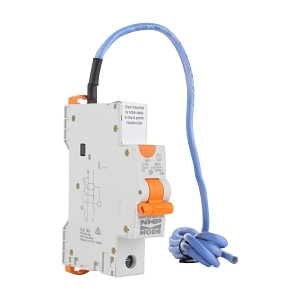

NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 16A 1PN C Curve 10mA Type A Pigtail


$48.30 List price: $64.20
+

Weight: 0.220 kg

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 16A 1PN C Curve 10mA Type A Pigtail

Brand: NHP

SKU: M6RCBS1610CAN

Alternatively Known As: RCD, Residual Current Circuit Breaker, Earth Leakage Circuit Breaker

Technical Specifications
  • Rated Voltage: 240 V
  • Frequency: 50/60 Hz
  • Trip Curve: C
  • Rated Impulse Withstand Voltage: 6 kV
  • Tripping Time: 40 ms
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 20,000 cycles
  • Degree of Protection: IP20
  • Operating Temperature: -5 to 55 °C
  • Dimensions (H x L x W): 86mm x 76mm x 18mm
  • Weight: 0.22 kg
Key Features
  • Compact design with pigtail for easy installation.
  • Rated current of 16A and leakage current of 10mA.
  • 6kA short circuit breaking capacity.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring electrical safety
Standards & Compliance
  • Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
  • Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring electrical safety.

Non-Returnable & Non-Cancellable
