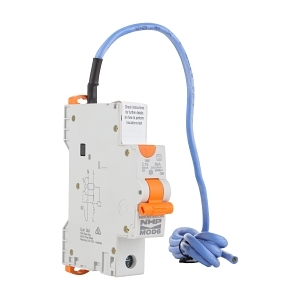

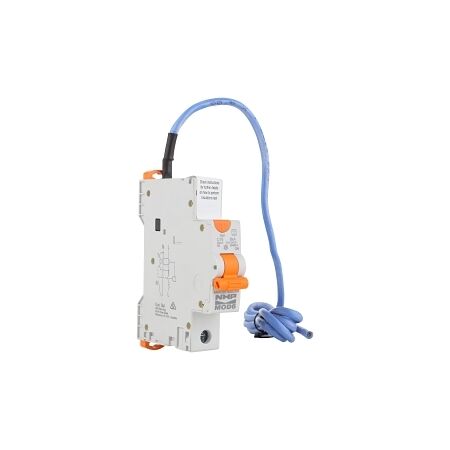

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 16A 1PN C Curve 30mA Type A Pigtail
Brand: NHP
SKU: M6RCBS1630CAN
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
- Rated Voltage: 240 V
- Frequency: 50/60 Hz
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Degree of Protection: IP20
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.22 kg
- Compact design with pigtail for easy installation.
- Rated current of 16A and leakage current of 30mA.
- High breaking capacity of 6kA.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small commercial installations
- Commercial: Retail and office environments requiring electrical safety
- Complies with AS/NZS 61009 for safety and performance standards.
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
1 year warranty against manufacturing defects.
The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring electrical safety.
