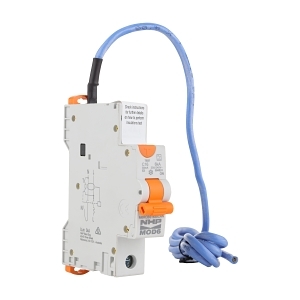

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 20A 1PN C Curve 10mA Type A Pigtail
Brand: NHP
SKU: M6RCBS2010CAN
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 20 A
- Rated Voltage: 240 V
- Rated Leakage Current: 10 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Protected Neutral Pole: Yes
- Number of Poles Total: 2
- Electrical Life: 10000 cycles
- Type of Electric Connection: Fork and pin
- Isolator Application: Yes
- Rated Insulation Voltage: 440 V
- Concurrently Switching Neutral Conductor: Yes
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Number of Protected Poles: 2
- Mechanical Life: 20000 cycles
- Max Shock Duration: 5 ms
- Max Shock Acceleration: 40 g
- Max Vibration Acceleration: 1.5 m/s²
- Max Vibration Frequency Operational: 80 Hz
- Max Vibration Duration: 30 min
- Operating Temperature: -5-55 °C
- Pollution Degree: 3
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.22 kg
Key Features
- Compact design with pigtail connection for easy installation.
- Rated current of 20A and leakage current of 10mA for effective protection.
- Trip curve C suitable for general applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any electrical installation requiring protection against earth leakage
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical installations.
