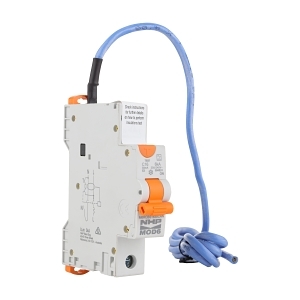

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 25A 1PN C Curve 10mA Type A Pigtail
Brand: NHP
SKU: M6RCBS2510CAN
Alternatively Known As: RCD, Residual Current Circuit Breaker, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 25 A
- Rated Voltage: 240 V
- Rated Leakage Current: 10 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles: 2
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.22 kg
Key Features
- Compact design with a short body for space-saving installation.
- Overcurrent protection with a rated current of 25A.
- Residual current sensitivity of 10mA for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring RCD protection
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
Non-Returnable & Non-Cancellable
