M6RCBS3230CAN

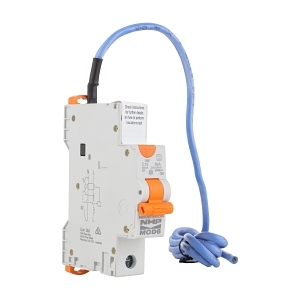

NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 32A 1PN C Curve 30mA Type A Pigtail


$38.90 List price: $51.70
+

Brand: NHP

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 32A 1PN C Curve 30mA Type A Pigtail

Brand: NHP

SKU: M6RCBS3230CAN

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications
  • Rated Voltage: 240 V
  • Frequency: 50/60 Hz
  • Trip Curve: C
  • Rated Impulse Withstand Voltage: 6 kV
  • Tripping Time: 40 ms
  • Mounting Method: DIN rail (top hat rail) 35 mm
  • Degree of Protection: IP20
  • Operating Temperature: -5 to 55 °C
  • Dimensions (H x L x W): 86mm x 76mm x 18mm
  • Weight: 0.22 kg
Key Features
  • Compact design with pigtail for easy installation.
  • Rated current of 32A and leakage current of 30mA.
  • 6kA short circuit breaking capacity.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small commercial installations
  • Commercial: Retail and office environments requiring electrical safety
Standards & Compliance
  • Complies with AS/NZS 61009 for residual current devices.
Environmental Benefits
  • Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information

Standard warranty applies, please check with the supplier for details.

Available Now

The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

Non-Returnable & Non-Cancellable
