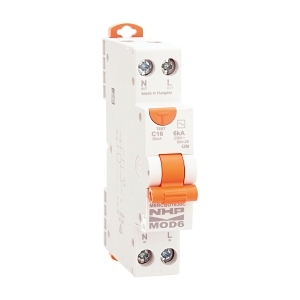

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 6A 1PN C Curve 30mA Type A 2 Screw
Brand: NHP
SKU: M6RCBD0630CAN
Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker
- Rated Current: 6 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 6 kV
- Tripping Time: 40 ms
- Min Service Voltage: 195 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Degree of Protection: IP20
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.13 kg
- Compact design with a short body for space-saving installation.
- Overcurrent protection with a rated current of 6A and leakage current of 30mA.
- Fast tripping time of 40 ms for enhanced safety.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring electrical safety
- Complies with AS/NZS 61009 for residual current devices.
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
1 year warranty against manufacturing defects.
The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
